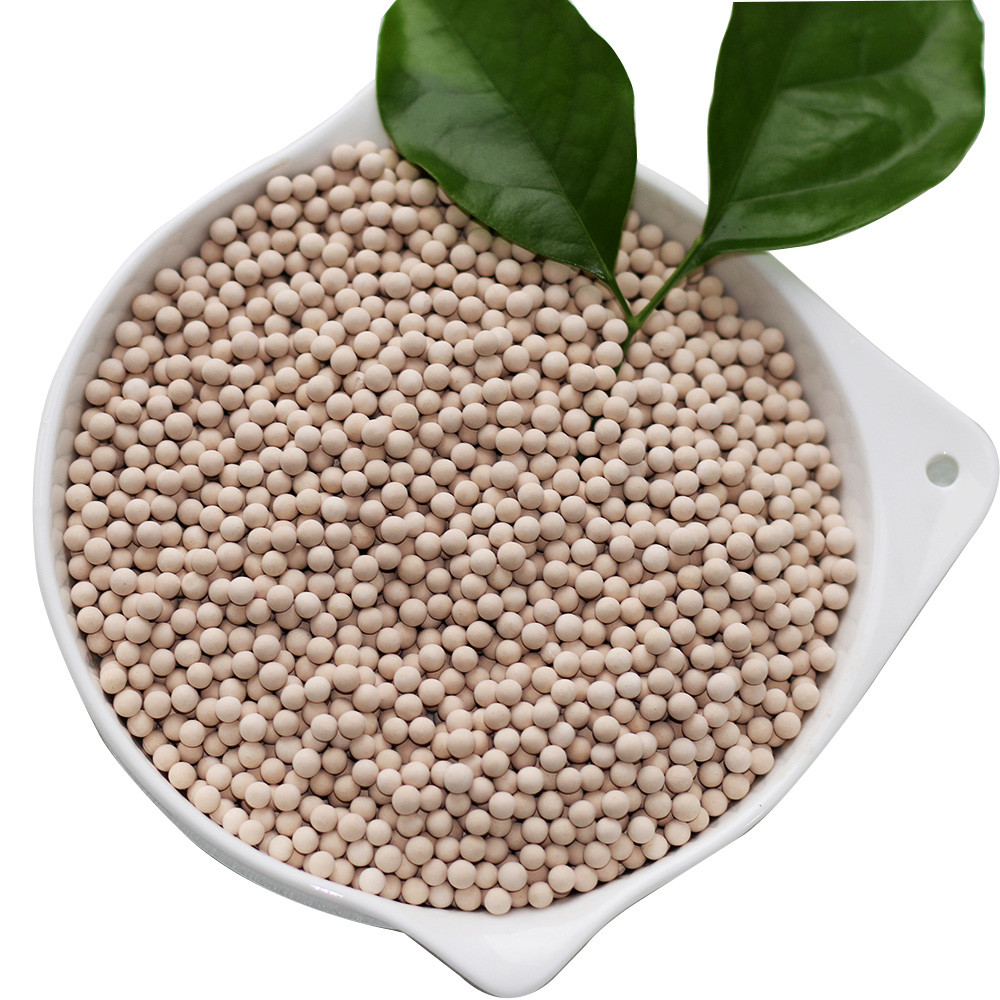

13x Molecular sieve is the sodium form of the Type X molecular sieve and an alkali metal aluminosilicate.It will adsorb molecules with critical diameters up to 10 angstroms. Shanghai Guangji 13x molecular sieve are used for various industrial gas & liquid drying applications,air plant feed purifcation ( simultaneous removal of H2O and CO2 ) drying and desulphurization of natural gas, Liquefied petroleum gas, liquefied hydrocarbon (hydrogen sulfide and mercaptan removal).
Technical Parameter
Model | 13X Molecular Sieve | |||
Shape | Sphere | Pellet | ||
Diameter(mm) | 1.6-2.5 | 3.0-5.0 | 1.6(1/16 inch) | 3.2(1/8 inch) |
Bulk density(g/ml) | ≥0.64 | ≥0.64 | ≥0.61 | ≥0.61 |
Crushing strength(N) | ≥30 | ≥85 | ≥30 | ≥50 |
Static H2O adsorption (%wt) | ≥28 | ≥28 | ≥27 | ≥27 |
Static CO2 adsorption(%) Bet,25°C,250mmHg | ≥18.0 | ≥18.0 | ≥17.5 | ≥17.5 |
Wear ratio (%wt) | ≤0.2 | ≤0.2 | ≤0.4 | ≤0.4 |
Size ratio up to grade (%) | ≥98 | ≥98 | ≥95 | ≥95 |
Water content (%wt) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Packing
Packing | Net weight（Kg） |
Carton Box | 25 |
Quick load bag | 500 |
55 gallon steel drum | 150 |
Packing according to your needs | |
